Recommended Applications
TV Sound Improvement
Background / Foreground Music
Performance
200 Watts RMS
40Hz to 20kHz (see Figure 1)
80W minimum recommended power
Finish Options
1. Satin White
2. Image Wrap™
3. The Trilogy™

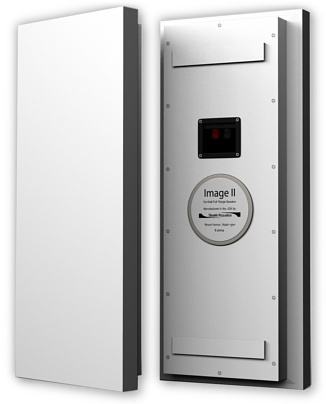

Satin White front/rear

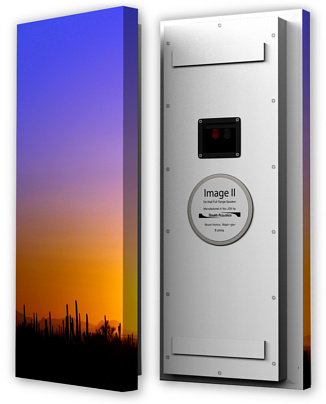

Image Wrap front/rear
Two-Way Customizable On-Wall Loudspeaker
Stealth Acoustics has reconfigured it's award-winning invisible speaker technologies and installed them into a thin, on-wall speaker package, with a completely flat-front radiating surface that can be finished in a wide array of options;
The Satin White Image II can be mounted right out of the box or finished in the field to match virtually any décor imaginable.

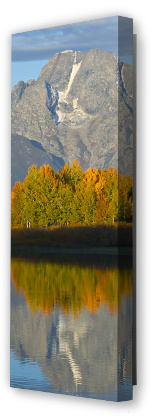

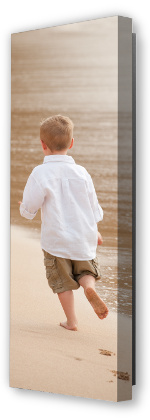

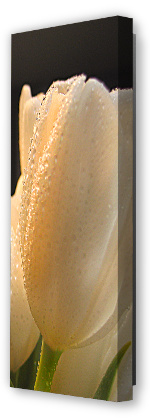

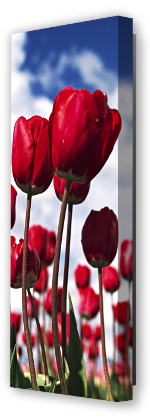

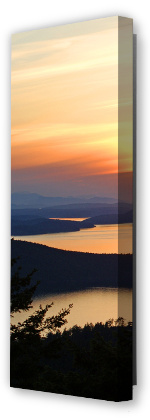

The Image Wrap™ model includes high resolution images (from our artist gallery or customer provided) that are factory laminated to the speaker face in a "studio wrap" style that turns the speaker itself into a work of art.

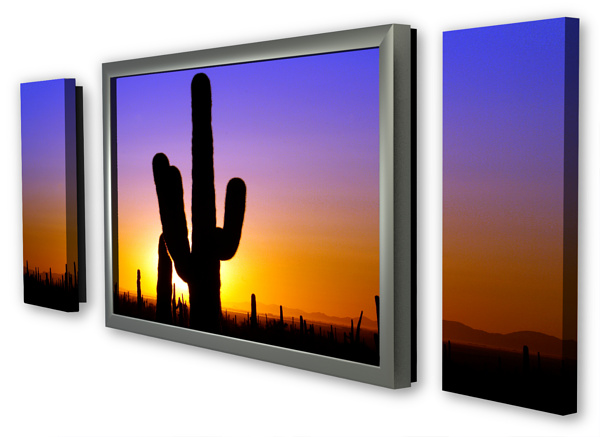

For a truly sweeping scene, select The Trilogy™. This option combines the freshly updated CoverArt with a pair of Image II speakers for an awesome panoramic three panel spread. No other on-wall speaker gives you this flexibility in creating the exact look you need to match your aesthetic goals.
Speaker installation takes only moments with the included Slimmount™ system. Simply use the included hollow wall anchors and mounting template for a hassle free art speaker mounting experience.
Customizable beauty is just a portion of the Image II speakers' value. Audio performance is impressive, with smooth high-frequency response, solid bass extension, excellent imaging and 170 degree dispersion.
Specification Sheet: Download PDF
Dimensional Drawing: Download PDF
Test Results: Download PDF
Frequency Response:
40Hz to 20kHz (see Figure 1)
Power Capacity:
200 watts RMS
80 watts minimum recommended power
Sensitivity:
80 dB (1 watt / 1 meter)
Driver Components:
High frequency:
1” (25 mm) neodymium motor
Low-frequency:
1” (25 mm) voice coil, 6” (152 mm) woofer, Ceramic 20 oz. (622 gr) magnet
System Impedance:
8Ω nominal
Polar Dispersion:
170 degrees vertical and horizontal planes
Dimensions:
Width: 11-7/8” (302 mm)
Height: 28” (711 mm)
Depth: 3-1/4” (83 mm)
Product Weight:
22 lbs. (10 kg.) each
Shipping Weight:
48 lbs. (21.3 kg.) each
26 lbs. (11.8 kg.) each
Included Accessories:
Slim-Mount Mounting Brackets
Hollow Wall Anchors
Mounting Screws
Terminal Wrench
Optional Accessories:
Image Wrap™ Custom Images
Stealth CoverArt™
Stealth Acoustics SA8400 8-Channel Amplifier
Note: All specifications subject to change. CoverArt™ and The Trilogy™ available in the USA and Canada only.
The Trilogy
