Full Range, 2-Way Stereo Panel (Single)

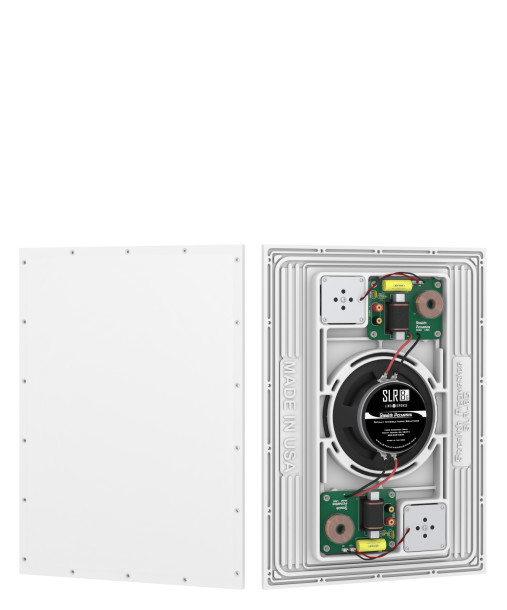

The Stealth Acoustics model SLR8G is a dual channel, full-range speaker system that is most popularly used with dispersed audio systems since it can play both stereo channels as a single panel. The has a rigid frame that attaches directly to standard structural framing becomes completely invisible after installation.  The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area.

The SLR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and two directly coupled 25 mm neo-magnet high-frequency motors. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the SLR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 45 Hz can be achieved. The SLR8G contains independent crossover sections and protection circuits (high-frequency and low-frequency sections) for each channel that automatically reset upon reduction of excessive amplifier power.  This robust speaker is designed to last as long as your home does.

The SLR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.



Recommended Uses

Multi-Room Audio Systems
Foreground Music
Background Music
Voice Paging
Limited Space Installations

Downloads

Specification Sheet: Download PDF
Installation Instructions: Download PDFView InstructionsSee Video
Dimensional Drawings: Download PDF
Test Results: Download PDF

Specifications

Frequency Response:

45Hz to 20kHz

Power Capacity:

120 watts RMS

60 watts minimum
recommended power

Protection:

Two independent self-resetting
devices (low and high frequency)

Sensitivity:

82 dB (1 watt / 1 meter)

System Impedance:

8Ω nominal

Driver Components:

High frequency:

Two 1” (25 mm) neodymium motor



Low-frequency:

1-1/2” (38 mm) voice coil, 8” (203 mm) woofer

Ceramic 20 oz. (622 gr) magnet

Polar Dispersion:

170 degrees vertical and horizontal

Dimensions:

Width: 15-7/8” (403 mm)

Height: 22″ (559 mm)

Mounting Depth:

2-1/2” (64 mm)

Product Weight:

14.5 lbs. (6.6 kg) each

Shipping Weight:

18 lbs. (8.1 kg) per single

Included Accessories:

Mounting shims

Shim tape

Mounting screws

Terminal wrench

Optional Accessories:

PS-22 PlaceSaver

BX-22 MDF Acoustical Back Box

MBX-22 UL Listed Metal Back Box

MBA-22 UL Listed Adjustable Metal Back Box

MBC-22 Concrete Back Box

SK-1 Shim Kit

CVXMR 100, 75 and 25 volt Constant Voltage Transformers

WARRANTY – Extended Warranty 15 year
