Image III SUB



CUSTOMIZABLE ON-WALL DUAL 8” SUBWOOFER

Stealth Acoustics has enhanced its Image III on-wall art speaker line with the matching Image III Subwoofer. Dual 8” woofers drive this thin, on-wall subwoofer package, with a completely flat-front radiating surface that can be finished in a wide array of options;

The Satin White Image III can be mounted right out of the box or finished in the field to match virtually any décor imaginable.

The Image Wrap™ model includes high resolution images (from our artist gallery or customer provided) that are factory laminated to the speaker face in a “studio wrap” style that turns the speaker itself into a work of art.

No other on-wall speaker gives you this flexibility in creating the exact look you need to match your aesthetic goals.

Image III Sub For Even More Bass

Add Image III subwoofers to your Image III speaker system to extend bass response down to 40Hz. Great for LFE extension in surround sound applications, or to artistically add more bass impact to any system.

Recommended Uses

Home Theater Systems
TV Sound
Foreground / Background Music
Multi-Room Audio Systems
Low Profile, Less Obvious Speakers

DownLoads

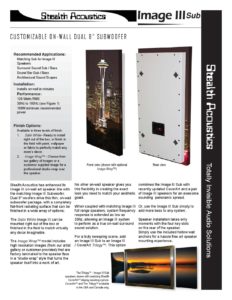

Specification Sheet: PDF File
Dimensional Drawing: Coming Soon!
Test Results: Coming Soon!

Finish Options

–  Satin White
–  Image Wrap
–  The Trilogy

Product options

Satin White Image III

The Satin White option allows for custom colors, paint, or art to be applied by you, or left plain.

Image Wrap

With the Image Wrap option, we will ship your speakers wrapped in our high quality printed vinyl with the image of your choice.

Trilogy

The Trilogy combines our CoverArt™ motorized screen cover with the Image Wrap speakers to create a continuous piece of art over all three.

Specifications

Frequency Response:

40Hz to 160Hz

Power Capacity:

120 watts RMS
100 watts minimum recommended power

Sensitivity:

83 dB (1 watt / 1 meter)

Driver Components:

(2) 8” (203 mm) woofer,
Ceramic 20 oz. (622 gr) magnet

System Impedance:

4Ω nominal

Polar Dispersion:

180 degrees vertical and horizontal planes

Dimensions:

Width: 14-1/2” (368 mm)

Height: 28” (711 mm)

Depth: 3-1/4” (83 mm)

Product Weight:

23 lbs. (10.4 kg.) each

Shipping Weight:

37 lbs. (12.2 kg.) each



Included Accessories:

Hollow Wall Anchors

Mounting Screws

Terminal Wrench

Optional Accessories:

Image Wrap™ Custom

Stealth CoverArt™

Stealth Acoustics SA2400 2-Channel Amplifier

Note:

CoverArt™ and The Trilogy™ available in the USA and Canada only.
