2-Way Invisible In-Wall or In-Ceiling Speaker

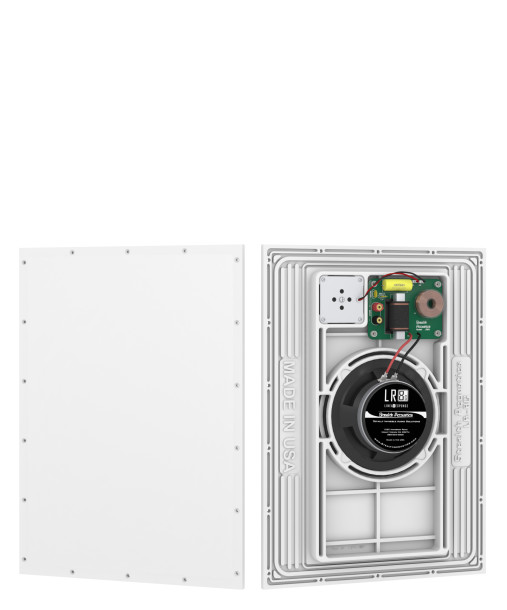

The Stealth Acoustics model LR8G is a two-way, full-range loudspeaker system that becomes completely invisible after installation. The loudspeaker has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.

The LR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.

The Stealth Acoustics LR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and a direct coupled 25 mm neo-magnet high-frequency motor. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the LR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 40 Hz can be achieved. The LR8G contains two independent protection circuits (high-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.

Recommended Uses

Home Theater / Surround Sound
High End Multi-Room Audio Systems
Foreground Music
Background Music
Voice Paging
Sound Reinforcement

Downloads

Specification Sheet: Download PDF
Installation Instructions: Download PDFView InstructionsSee Video
Dimensional Drawings: Download PDF
Test Results: Download PDF

Specifications

Frequency Response:

45Hz to 20kHz

Power Capacity:

120 watts RMS

60 watts minimum
recommended power

Protection:

Two independent self-resetting
devices (low and high frequency)

Sensitivity:

83 dB (1 watt / 1 meter)

System Impedance:

8Ω nominal

Driver Components:

High frequency:

1” (25 mm) neodymium motor



Low-frequency:

1.5” (38 mm) voice coil, 8” (203 mm) woofer

Ceramic 20 oz. (622 gr) magnet

Polar Dispersion:

170 degrees vertical and horizontal

Dimensions:

Width: 15-7/8” (403 mm)

Height: 22″ (559 mm)

Mounting Depth:

2-1/2” (58 mm)

Product Weight:

14 lbs. (6.3 kg) each

Shipping Weight:

32 lbs. (14.5 kg) per pair

20 lbs. (9.0 kg) per single

Included Accessories:

Mounting shims

Mounting screws

Terminal wrench

Optional Accessories:

PS-22 PlaceSaver

BX-22 MDF Acoustical Back Box

MBX-22 UL Listed Metal Back Box

MBA-22 UL Listed Adjustable Metal Back Box

MBC-22 Concrete Back Box

SK-1 Shim Kit

CVXMR 100, 75 and 25 volt Constant Voltage Transformers

WARRANTY – Extended Warranty 15 year
